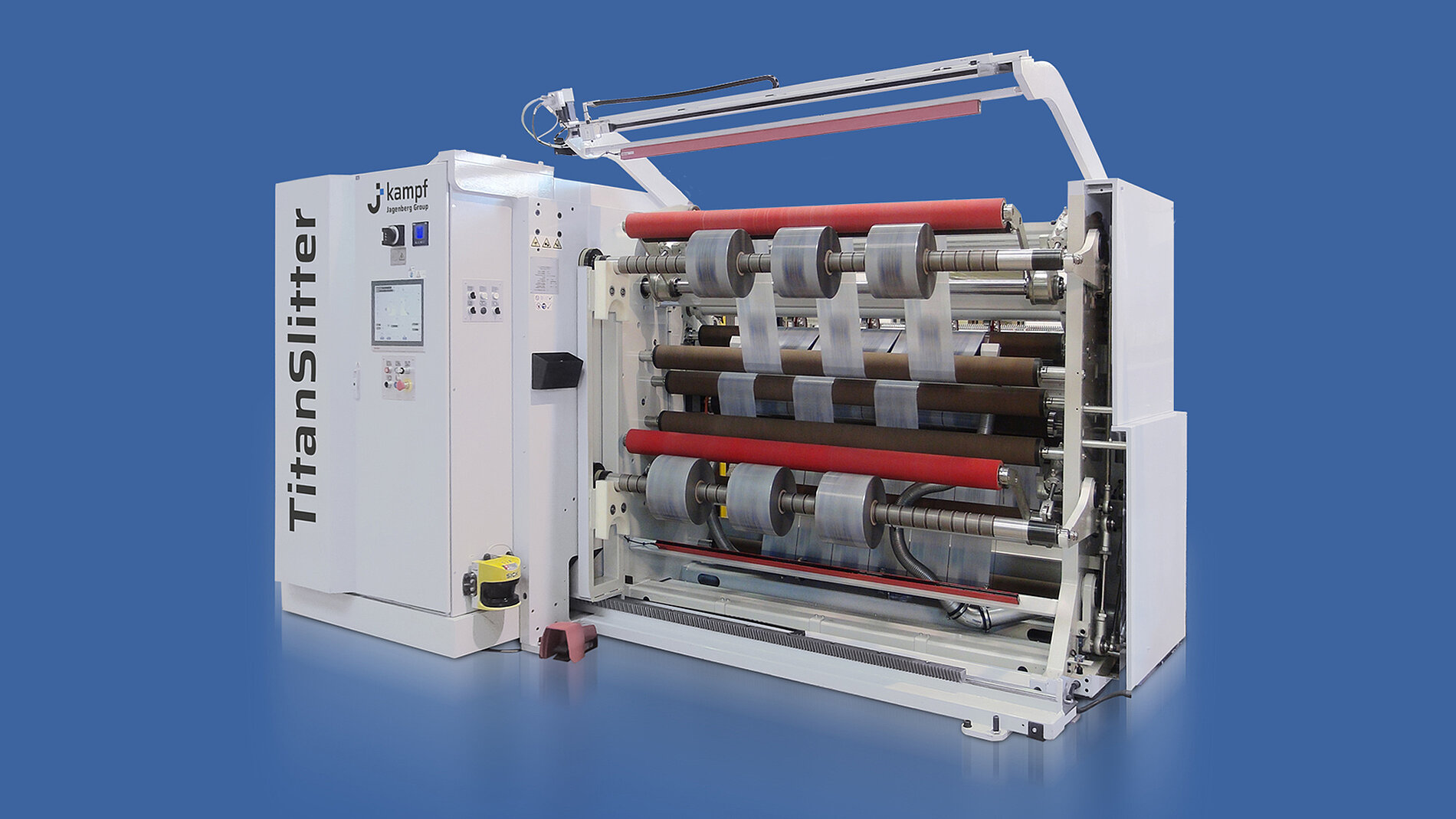

TitanSlitter SR800
Modular Design - High Performance
The TitanSlitter SR800 is a high performance, duplex slitter rewinder and is designed to meet the requirements of the most demanding production environments. The SR800 offers a comprehensive range of features and options.
Its modular design provides an economic and simple solution for upgrading to a higher level of automation as production demands increase.
The TitanSlitter SR800 features the latest mechanical, hydraulic, pneumatic, electronic and computer control technology to assure converters of consistent, high quality rewind reels, with improved levels of sustainability, productivity and easy job repeatability.

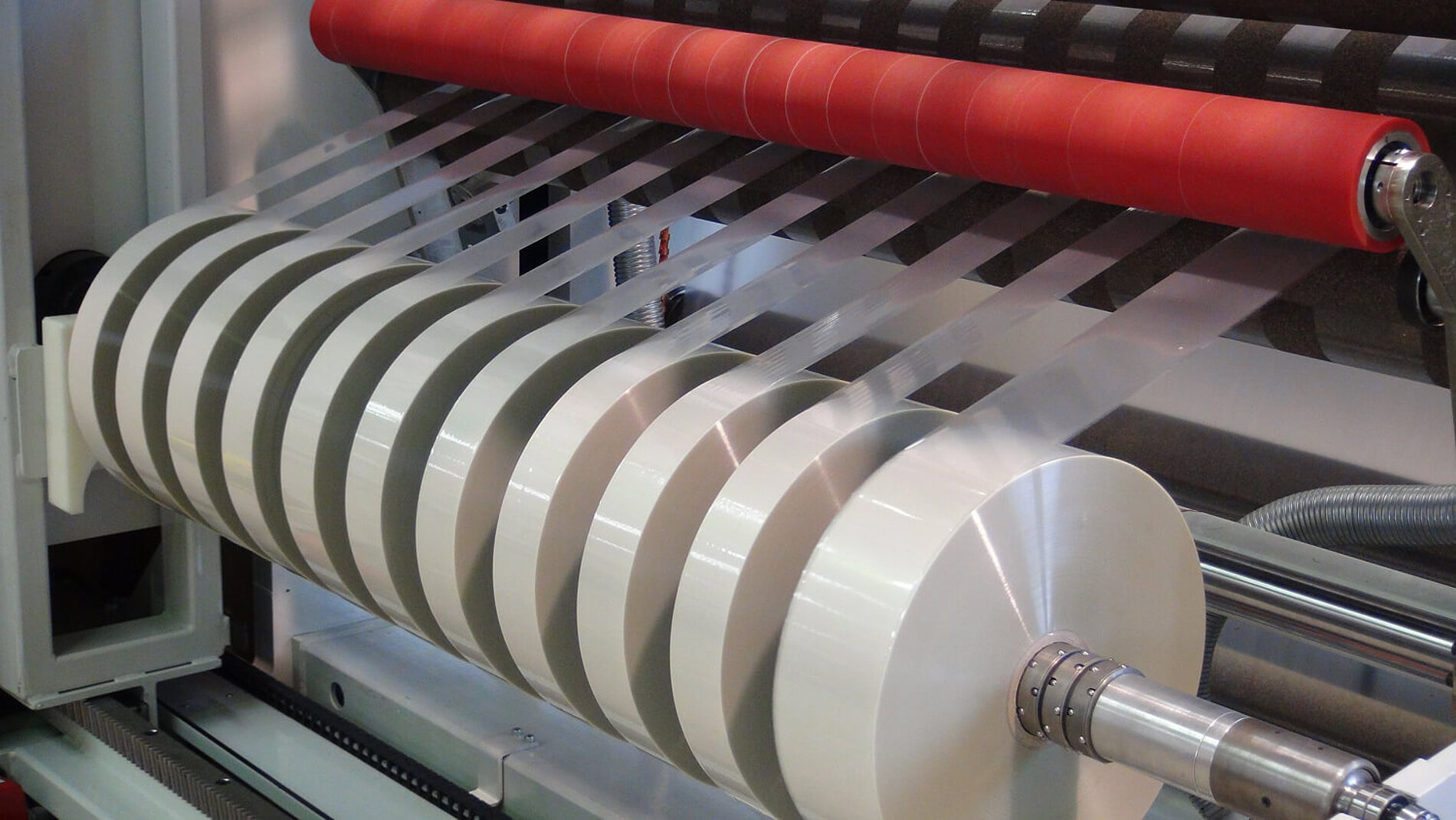

Materials processed include plain, printed, coated or metallized plastic films, laminates, label materials and paper from 10 to 200 µm.
Standard features
- Titan differential winding technology
- AC digital servo drive technology

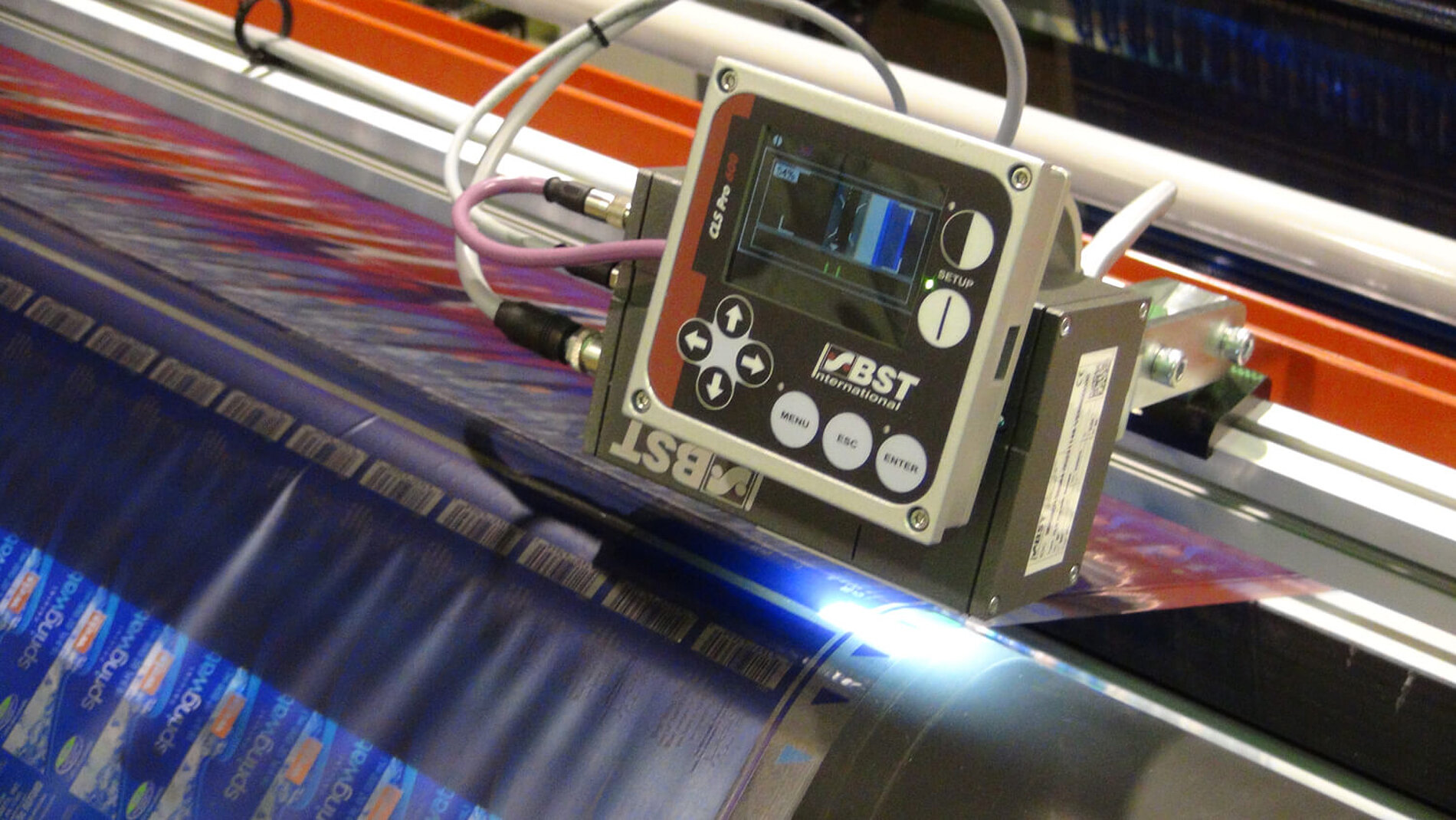

- Digital line / edge guide system

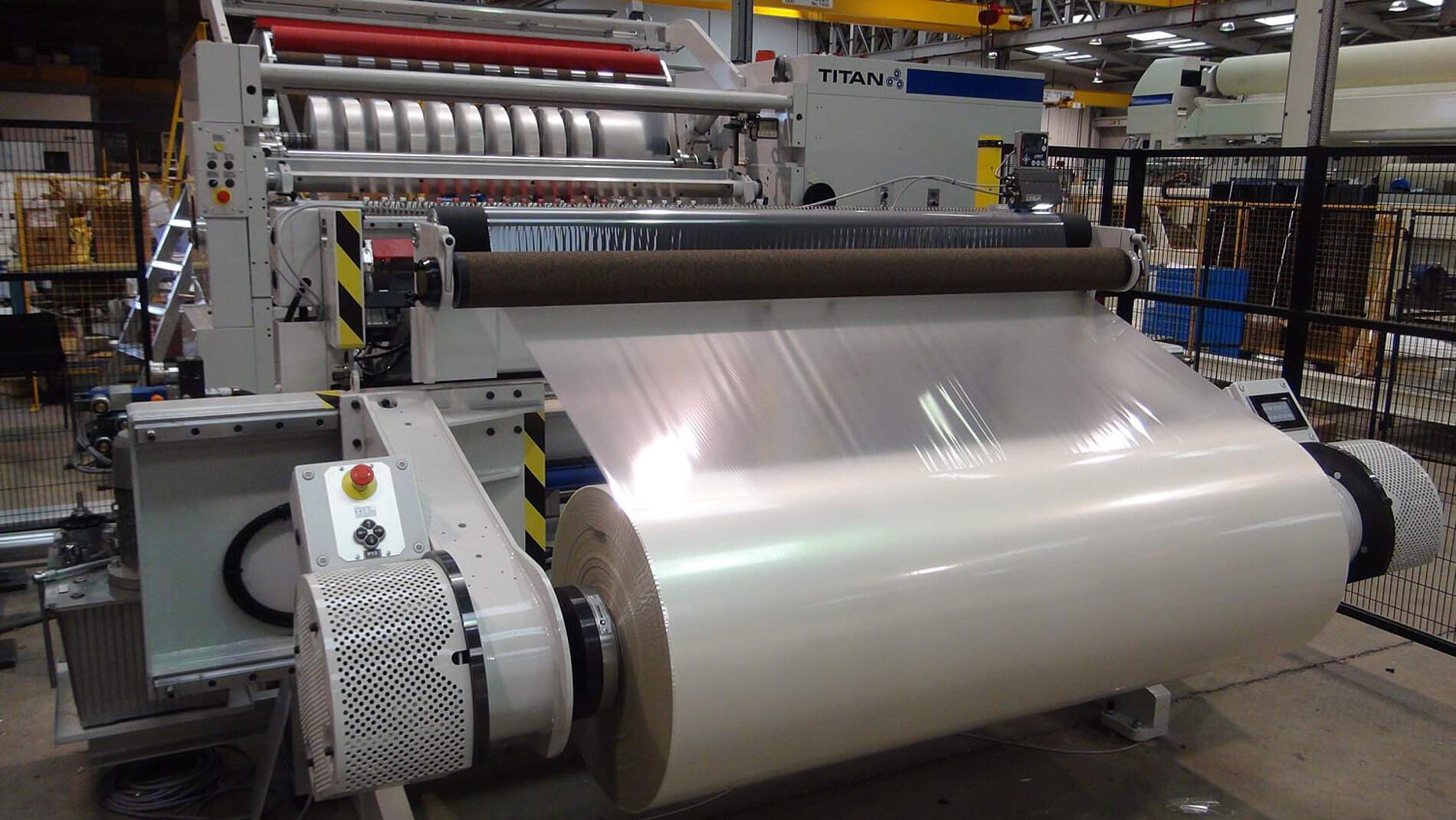

- Unwind "closed loop" dual brake control

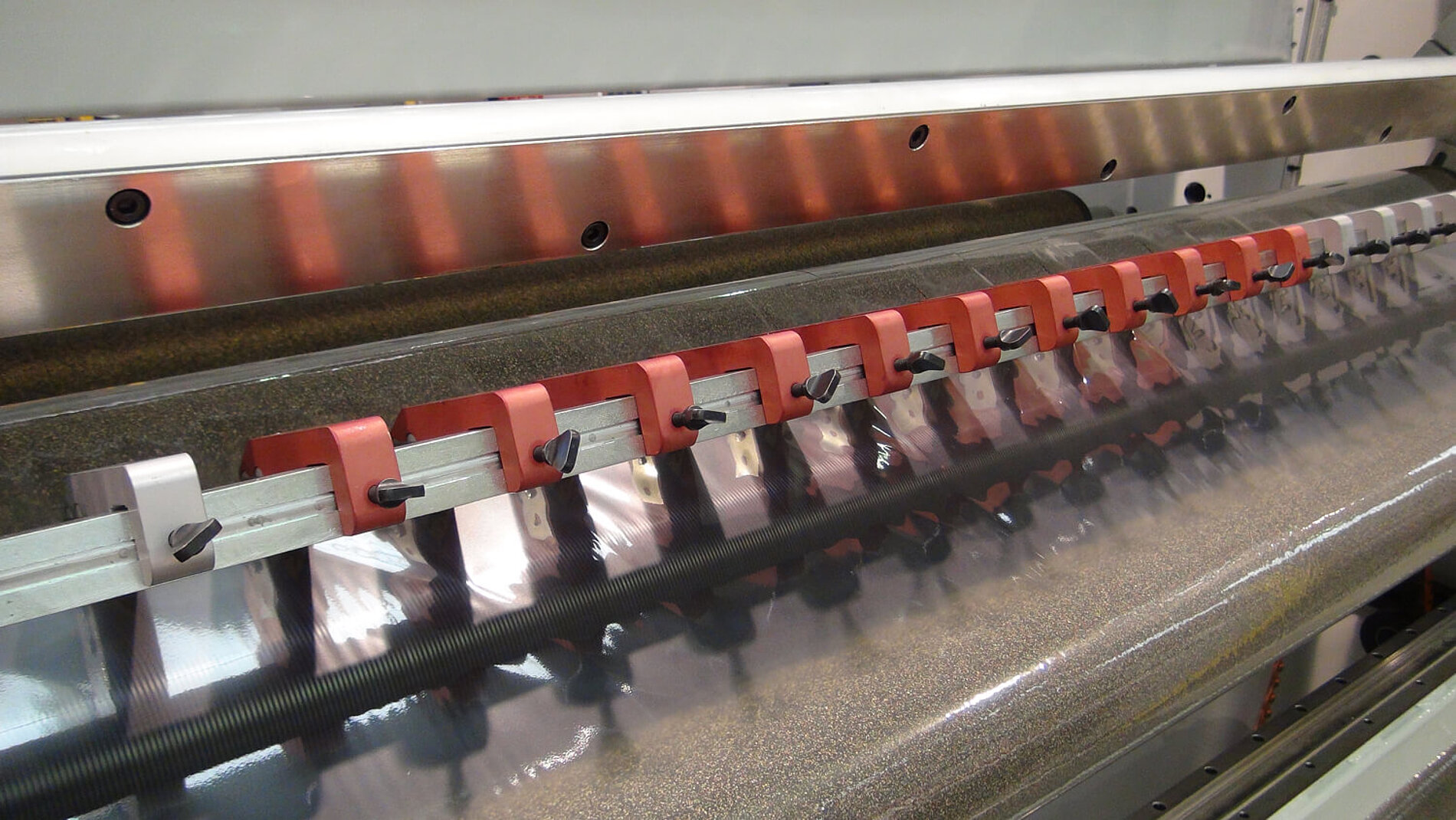

- Razor, rotary or shear slitting
- Memory for material and job set up
- S-Wrap centre drive (no nip)
- CE safety fencing and laser scanner (in EU countries)
- Range of unloading devices
- Secure internet connection for remote diagnostics
Optional features

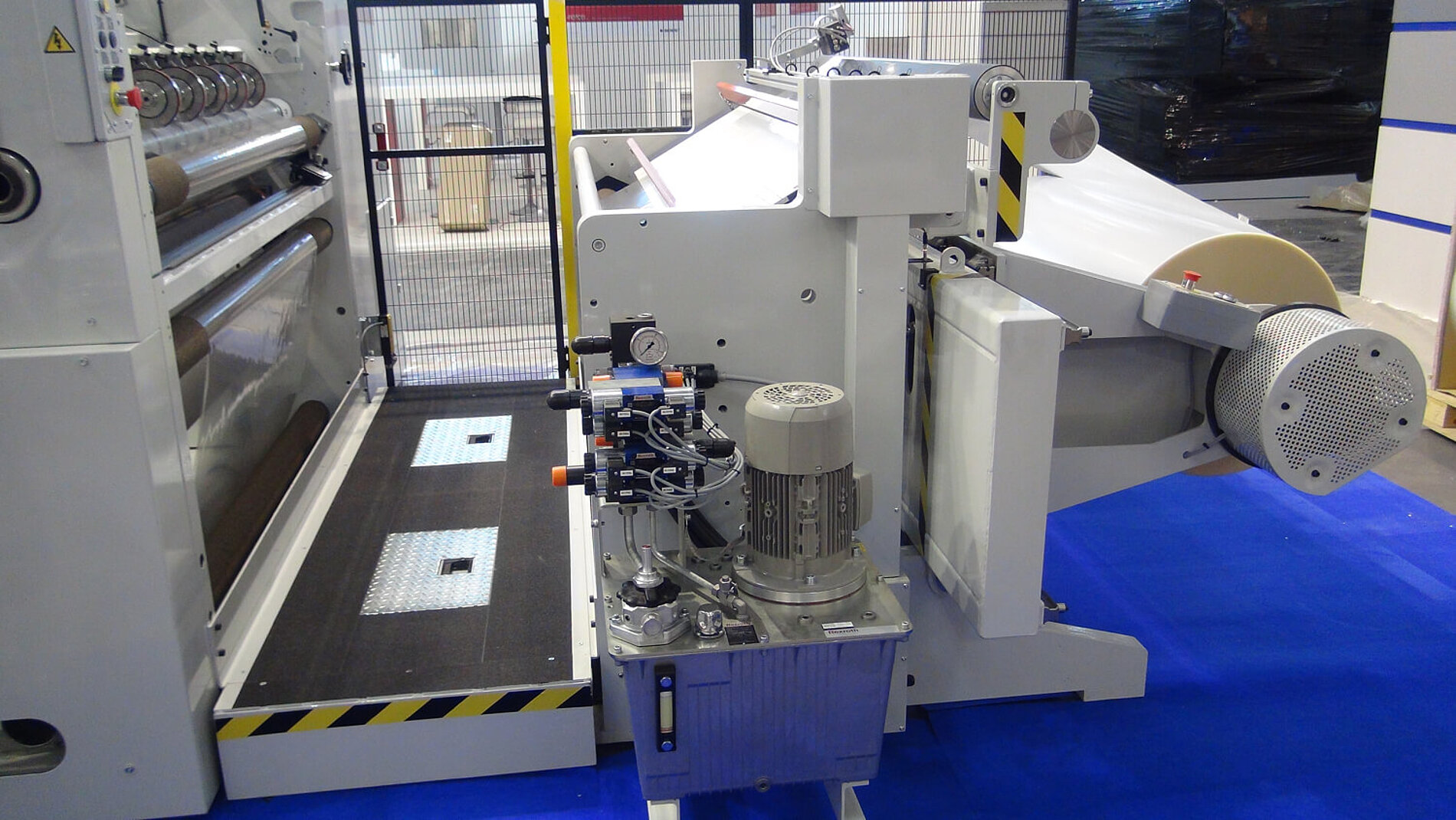

- Motor driven unwind

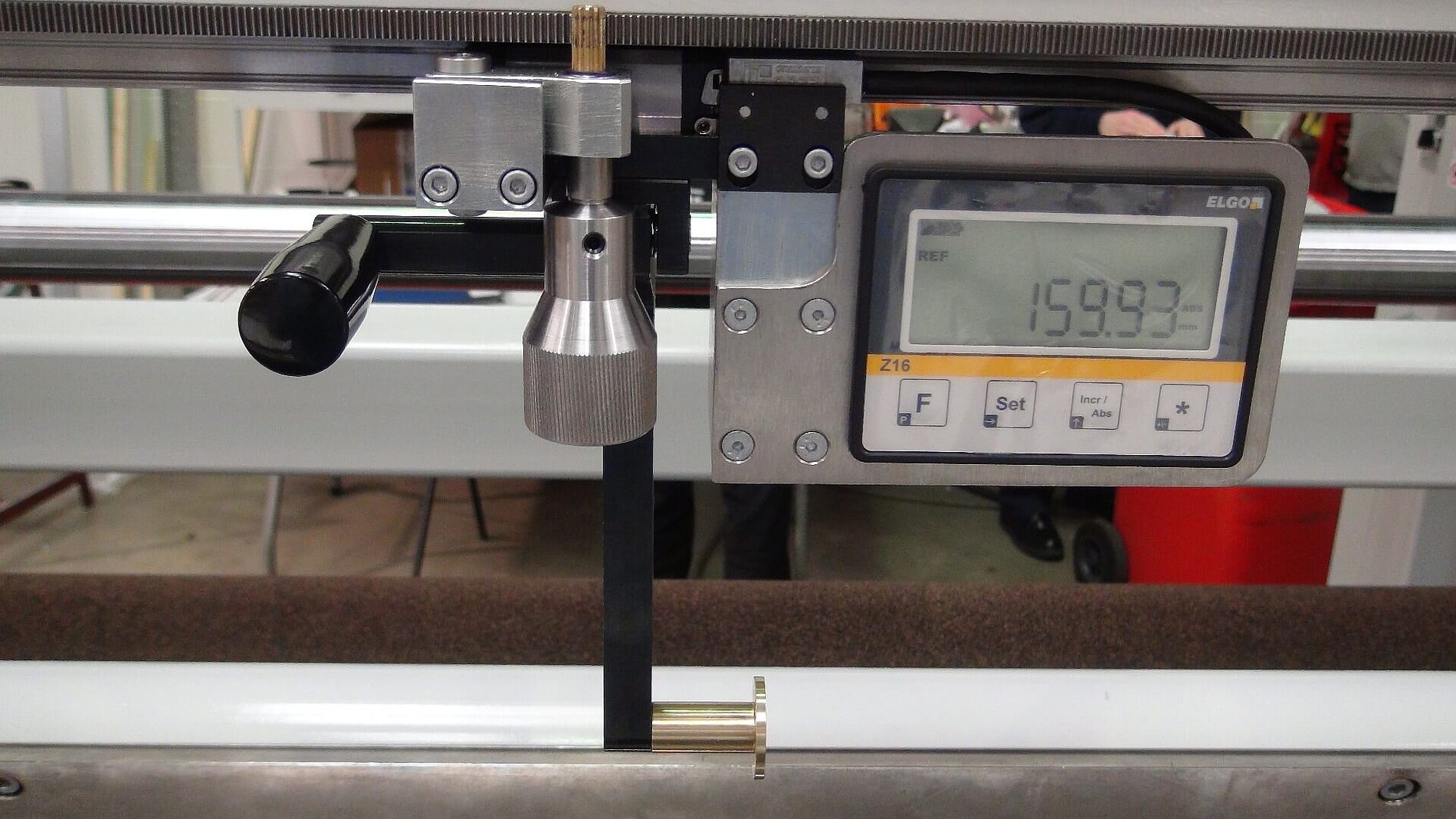

- Positive positional device for knife positioning
- Closed loop loadcell rewind control
- Impression counter
- Static eliminators
- Gap winding control

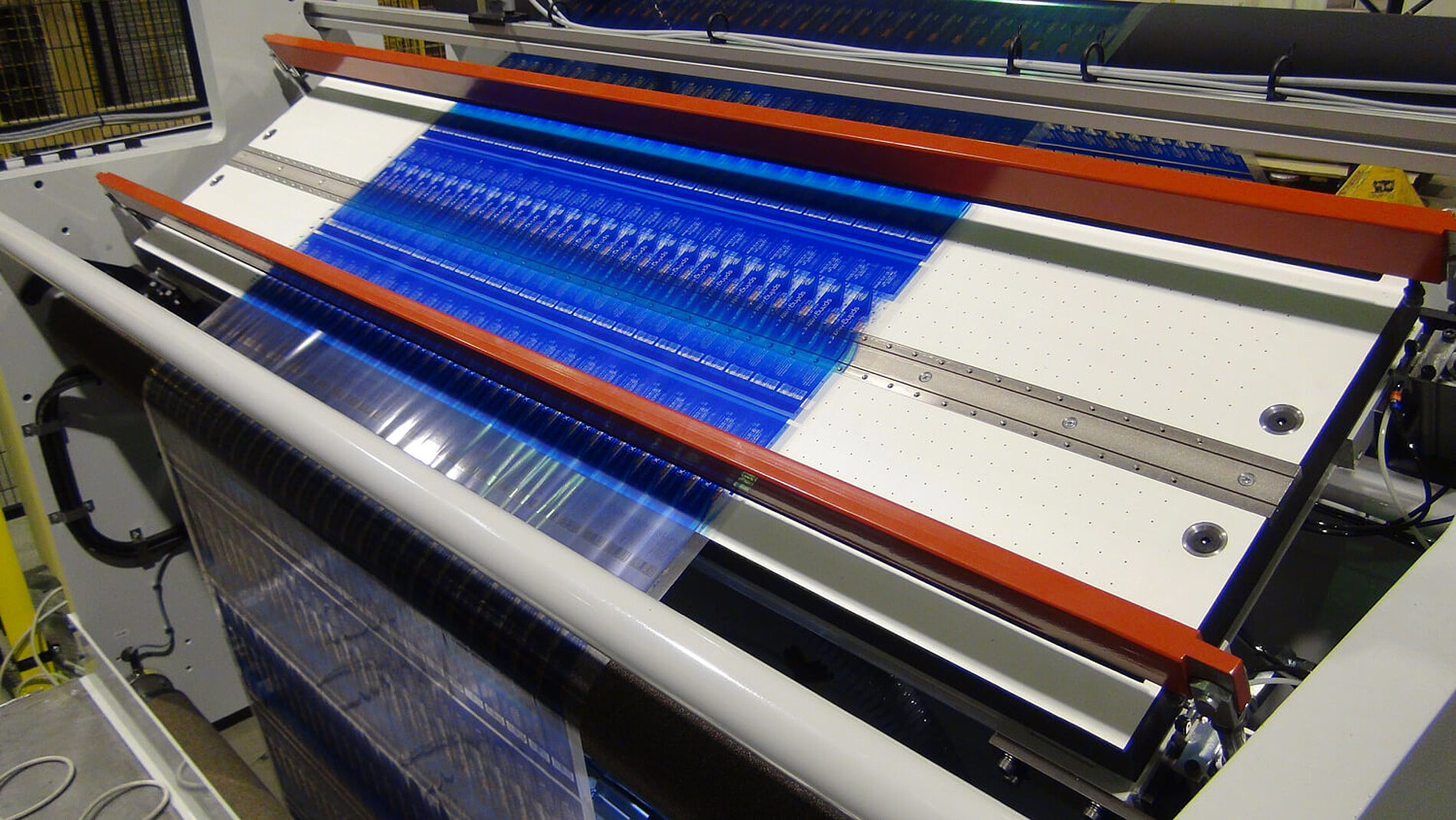

- Splice table
- Automatic individual knife positioning system for male and female knives

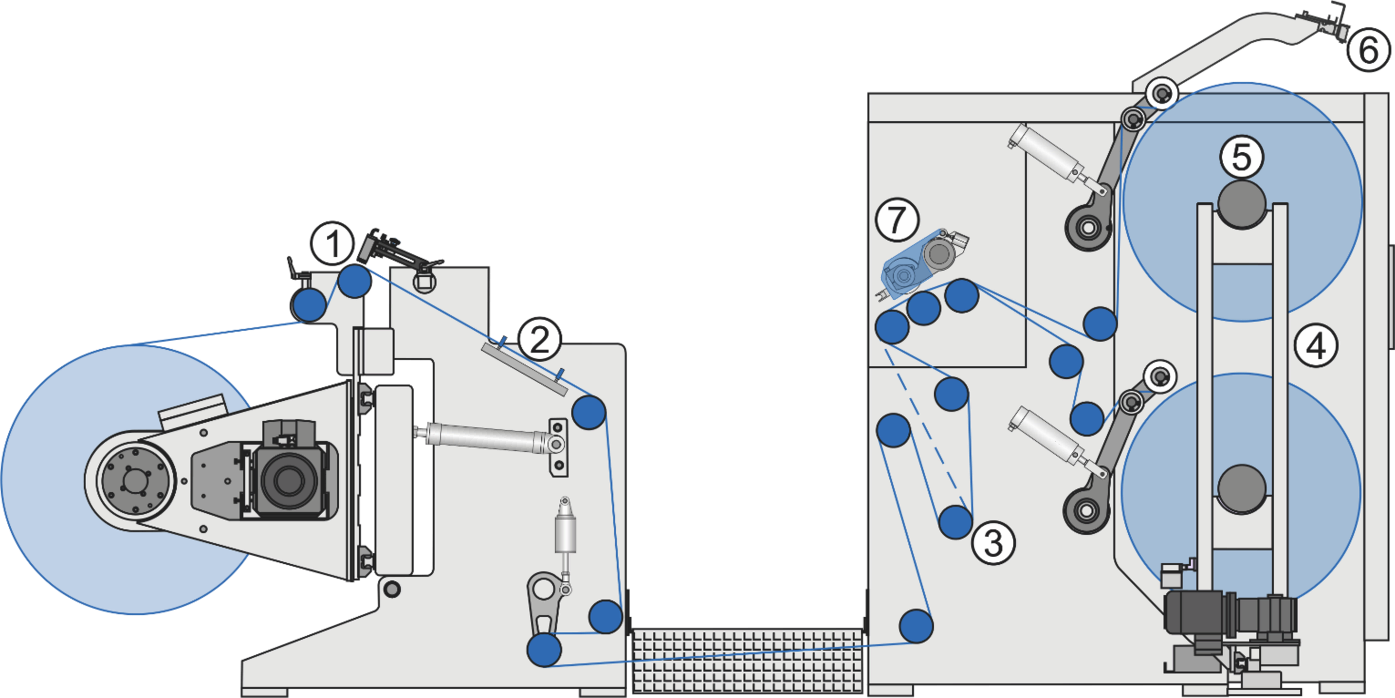

Web Path of TitanSlitter SR800
1 Digital Web Guidance 2 Cant Roller (Option) 3 Splice Table (Option) 4 Tension & Drive Control 5 Automatic Reel Stripping (Option) 6 Differential Rewind | 7 Laser Core Positioning (Option) 8 Combination Knife Holder Unloading Devices (Option) EU Safety Guarding (Standard in EU) Fully Automatic Knife Positioning (Option) |

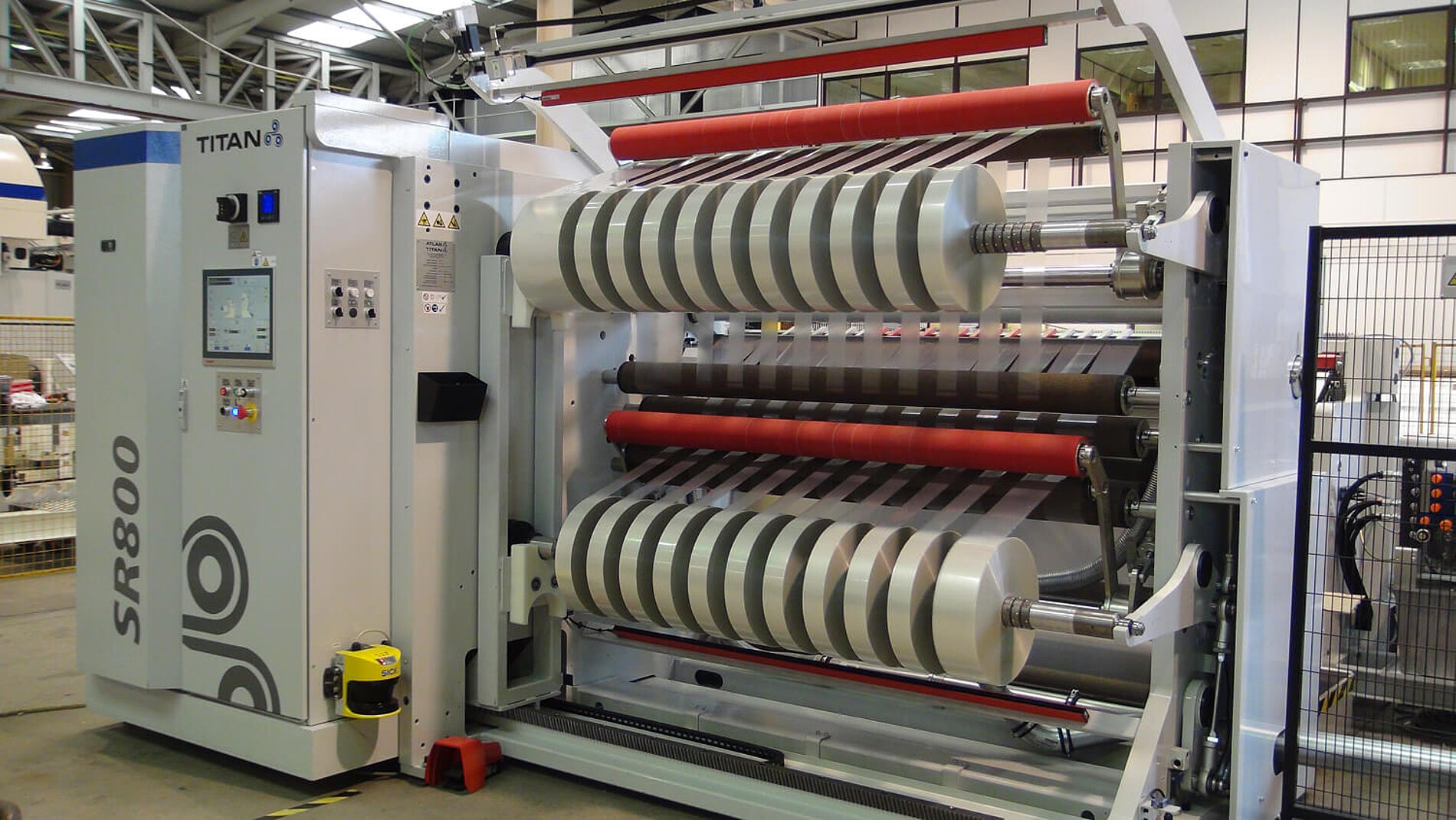

TitanSlitter SR800
Watch the TitanSlitter SR800 in Action
Technical Data TitanSlitter SR800
The most important performance features and specifications of the TitanSlitter SR800 at a glance.
| TitanSlitter SR800 | |
|---|---|
| Materials | Films, Refined Papers, Laminates |
| Material thickness | 10 - 200 µm (depending on material characteristics) |
| Materials width | max. 1,050 mm / 1,350 mm / 1,650 mm |
| Original roll diameter | max. 1,300mm |
| Finished roll diameter | max. 800 mm |
| Finished roll weight | Depending on requirements |
| Slitting systems | Razor blade cut / Shear cut |
| Slitting width | ≥ 25 mm |
| Winding cores | All common types |
| Machine speed | max. 700 m/min |

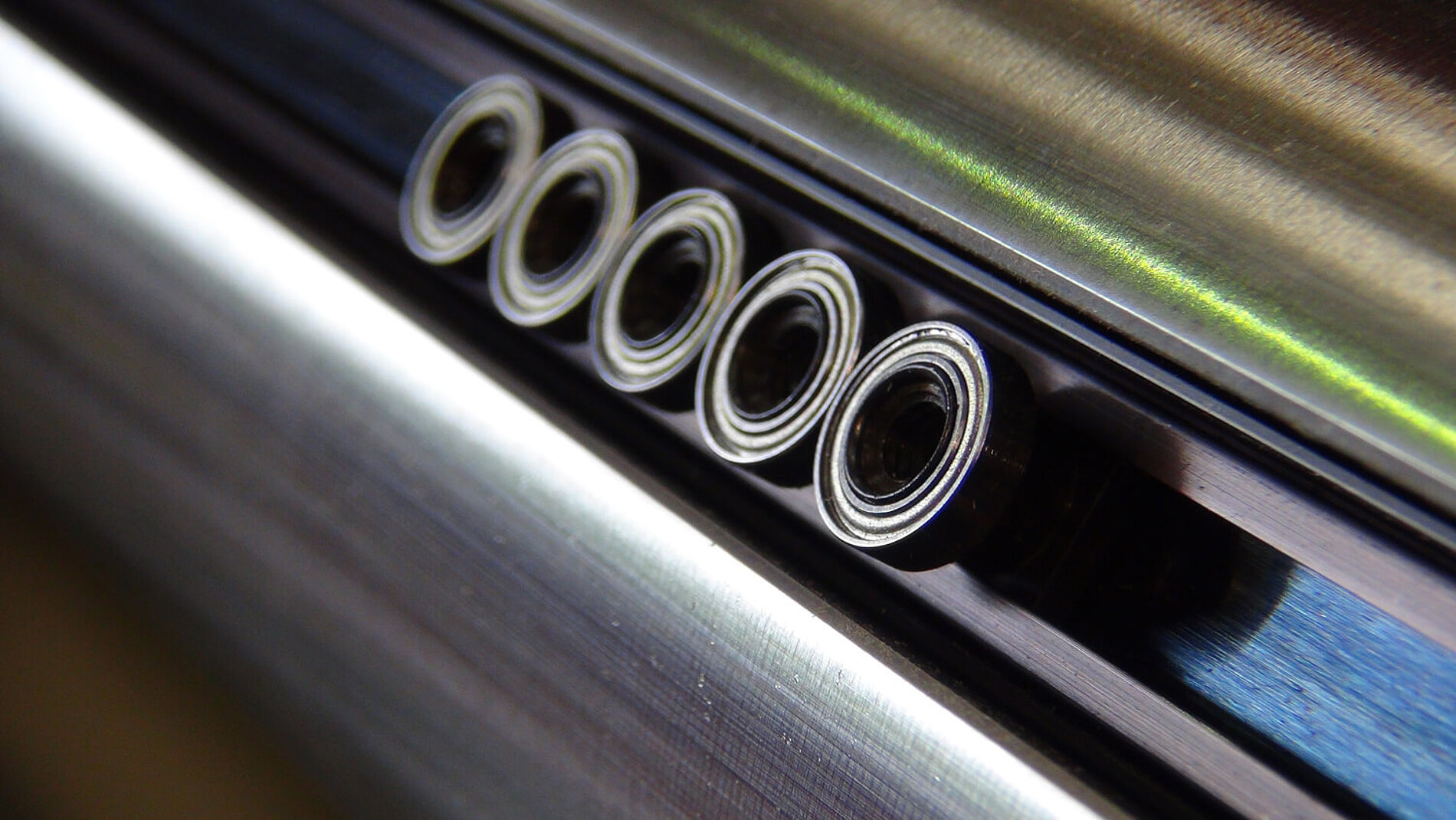

More impressions of the TitanSlitter SR800
